Indoor air pollution: an international health problem!
The quality of the indoor air we breathe is important for our health and well-being. The less dust and fewer allergens, micro-organisms and chemical contaminants we breathe in, the lower the risk of becoming unwell.
According to recent studies by the leading institutions WHO (World Health Organisation) and EPA (US Environmental Protection Agency), the indoor air in our living, working and mobility areas is often 2 to 5 and even up to 100 times more polluted than the air outside due to the biological and chemical load!
The problem is compounded by today’s method of energy-efficient construction. As a result, inadequate ventilation often causes undisturbed propagation of bacteria, viruses, house dust mites, mould, fine dust and pollen in our indoor spaces.
Given the increasing impact due to fine dust and pollutants, clean indoor air can no longer be taken for granted. The quality of breathing air has deteriorated markedly in recent years. Everywhere in our indoor spaces, bacteria, viruses, dust mites, mould, fine dust and pollen can spread undisturbed.
Reason enough to pay full attention to indoor air quality!

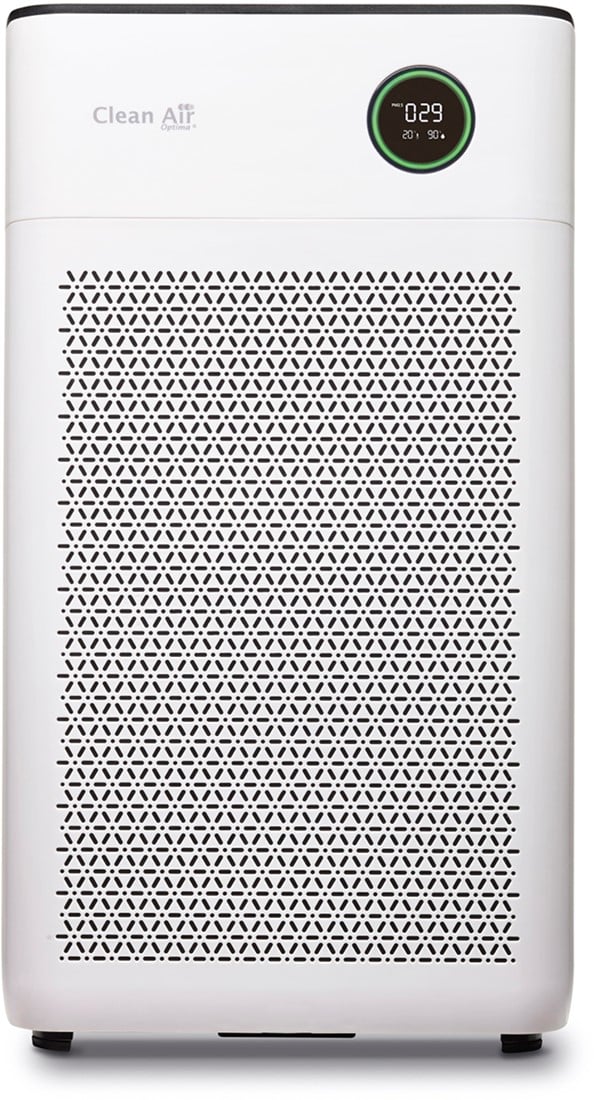

CA-510 Pro Smart intelligent HEPA UV ioniser air purifier
Suitable for small and large rooms up to 110m² / 275m³ / 1180ft²
Health starts with clean air!
The CA-510Pro Smart intelligent HEPA UV ioniser air purifier features powerful filters with a wide operating range against particles, molecules, gaseous pollutants and odours. By applying six up-to-date filter technologies, the CA-510 Pro Smart air purifier creates clean, fresh breathing air and offers protection against:
• Dust/fine dust
• Bird dust
• Bacteria and viruses
• Cigarette/tobacco smoke
• Odours
• Gases
• Fine particles (PM2.5)
• TVOC's
• Hair and dander
• House dust mites
• Mould spores
• Pollen
With its stylish compact design, neutral colour scheme and ultra-quiet operation, the CA-510Pro Smart air purifier can be used in any interior. The wide and effective filter spectrum makes the CA-510Pro Smart air purifier especially suitable for people suffering from asthma, bronchitis, COPD, allergies and a weak immune system.
Clean Air Optima® DUAL Airflow System Air Purifier

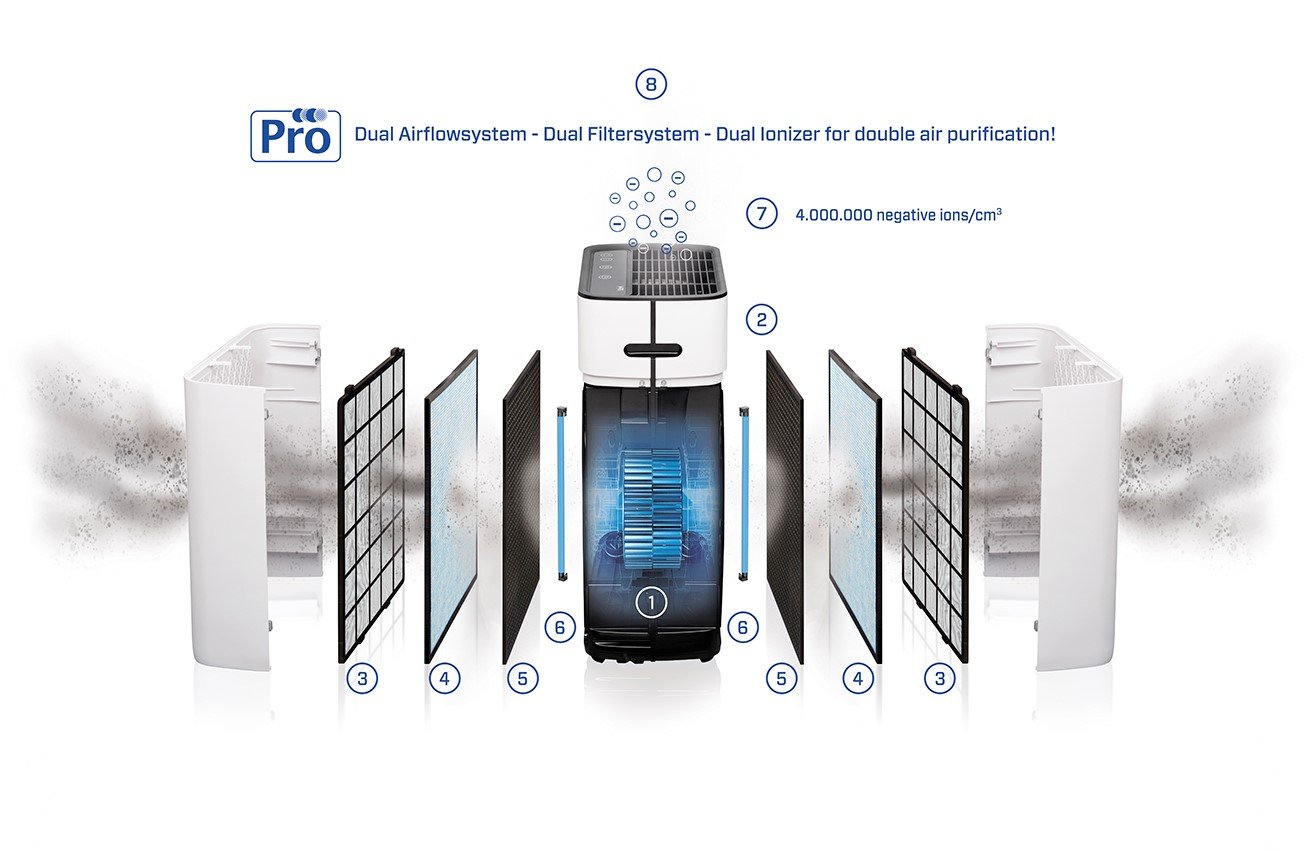

Effective air purification in eight steps:
1. Two-sided horizontal intake
Polluted indoor air is drawn in by a low-noise powerful fan.
2. Intelligent Particle Sensor™
The built-in smart sensor measures and controls air quality entirely automatically. The 3-speed fan automatically anticipates the PM2.5 level measured in terms of indoor air solids load.
3. Pre-filter
Two pre-filters capture larger dust particles and other pollutants, such as pet hair and dander.
4. Two TRUE HEPA (H13) filters with nanosilver coating
These two filters purify 99.97% of all suspended matter down to 0.3 microns (0.3 µm) from the air. The HEPA filter is the most effective air filter for removing: dust/fine dust, allergens and other solid particles.
5. Two activated carbon filters
The two activated carbon filters effectively filter gases, chemicals, cigarette smoke, volatile organic compounds (VOCs) and odours from indoor air.
6. Two UV-C LED Lamps
The ultraviolet light from the lamp (UV-C radiation) with a wavelength of 254nm kills health-harming microorganisms such as: germs, viruses, mould (mould spores) and bacteria. Furthermore, it destroys microorganisms that have accumulated in the unit.
7. DUO ozone-free DIN EN 60335-2-65 ioniser
Two ionisers with a total capacity of more than 4,000,000 negative ions / cm³ that are dispersed throughout the room, thereby neutralising harmful substances and odours. Negative ions attach themselves to dust particles, microorganisms and other undesirable substances in the air and bind them together. These particles become heavier than the air in this way and drop down or are filtered out of the air by the air purifier.
8. Purified air
Clean, healthy breathing air flows out from the top of the air purifier into the indoor space.
Effectiveness Clean Air Optima® air purifiers with CADR certification
The Clean Air Delivery Rate (CADR) effectiveness criterion determined in supplier-independent laboratory tests places both Clean Air Optima® CA-510Pro Smart and CA-509Pro Smart air purifiers at the forefront of indoor air quality improvement systems. The high-performance filter system in both units extracts micro-fine particles down to 0.3 microns (0.3 µm) from the air with 99.97% efficiency.
The CADR value indicates how effectively the air purifier filters particles such as smoke, dust and pollen from indoor air. This is measured by independent bodies in standard spaces up to 20.4m² and the resulting measured values range from 10 to 450 cubic feet of particle-free air per minute.

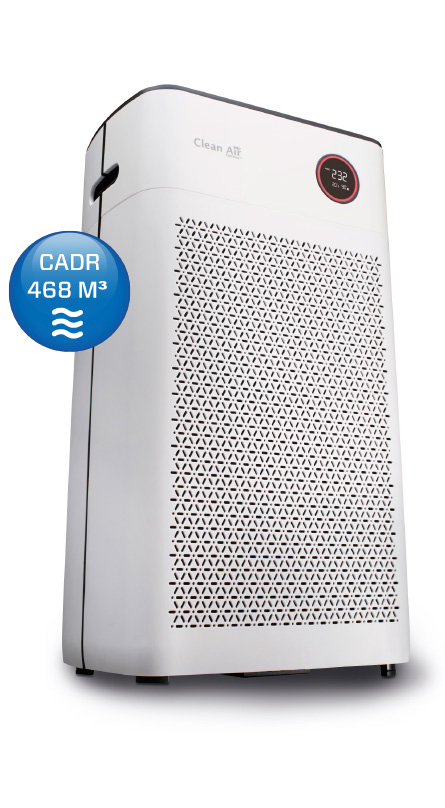

The CADR value of the CA-510Pro Smart intelligent HEPA UV ioniser air purifier is 468 M³ particle-free air/hour. .
The intelligent high-end Clean Air Optima® CA-510Pro Smart air purifier provides the user with the assurance of healthy, pure breathing air in the indoor environment.
Intelligent Particle Sensor and digital monitor air purifier
The built-in smart sensor measures and controls air quality entirely automatically. The 3-speed fan automatically anticipates the indoor air load of solid particles as measured by the sensor.
The CA-510Pro Smart air purifier provides automatic and precise feedback on current air quality via the digital monitor by measuring PM2.5 level, temperature and humidity in the indoor space.
Particle measurement (PM 2.5) Air quality:
<80 Green - Good
80-150 Blue - Moderate
>150 Red - Poor
Particle measurement/Fine dust/PM2.5
Fine dust is a collective term for air pollution with particles small enough to be inhaled. Fine dust in the air can have harmful effects on health. In 1999/2008, the European Union laid down limits for PM10 fine dust (particulate matter with a particle size of approx. 10 microns) and PM2.5 (particulate matter with a particle size of approx. 2.5 microns).
The main source of fine dust, especially PM10, in the indoor environment is tobacco smoke. In addition, fine dust such as PM2.5 comes from open fireplaces, from baking and frying and vacuuming.
Measuring relative humidity and temperature
Key aspects for effective air cleaning: relative humidity between 40 - 60% and a room temperature of approx. 20 - 23° C in indoor spaces.
Extremely quiet
The brushless DC motor of the Clean Air Optima® air purifier CA-510Pro Smart is extremely quiet, energy-efficient and provides high-precision adjustment by controlling the air speed at your choice of 3 fan levels. Moreover, the BLDC motor in this unique air purifier from Clean Air Optima® has a much longer lifespan compared to a standard air purifier with an AC motor.
Ultra-quiet sleep mode programming
The sleep mode programming of the CA-510Pro Smart intelligent air purifier dims the display and switches the fan speed to an ultra-quiet speed for a pleasant night's sleep.

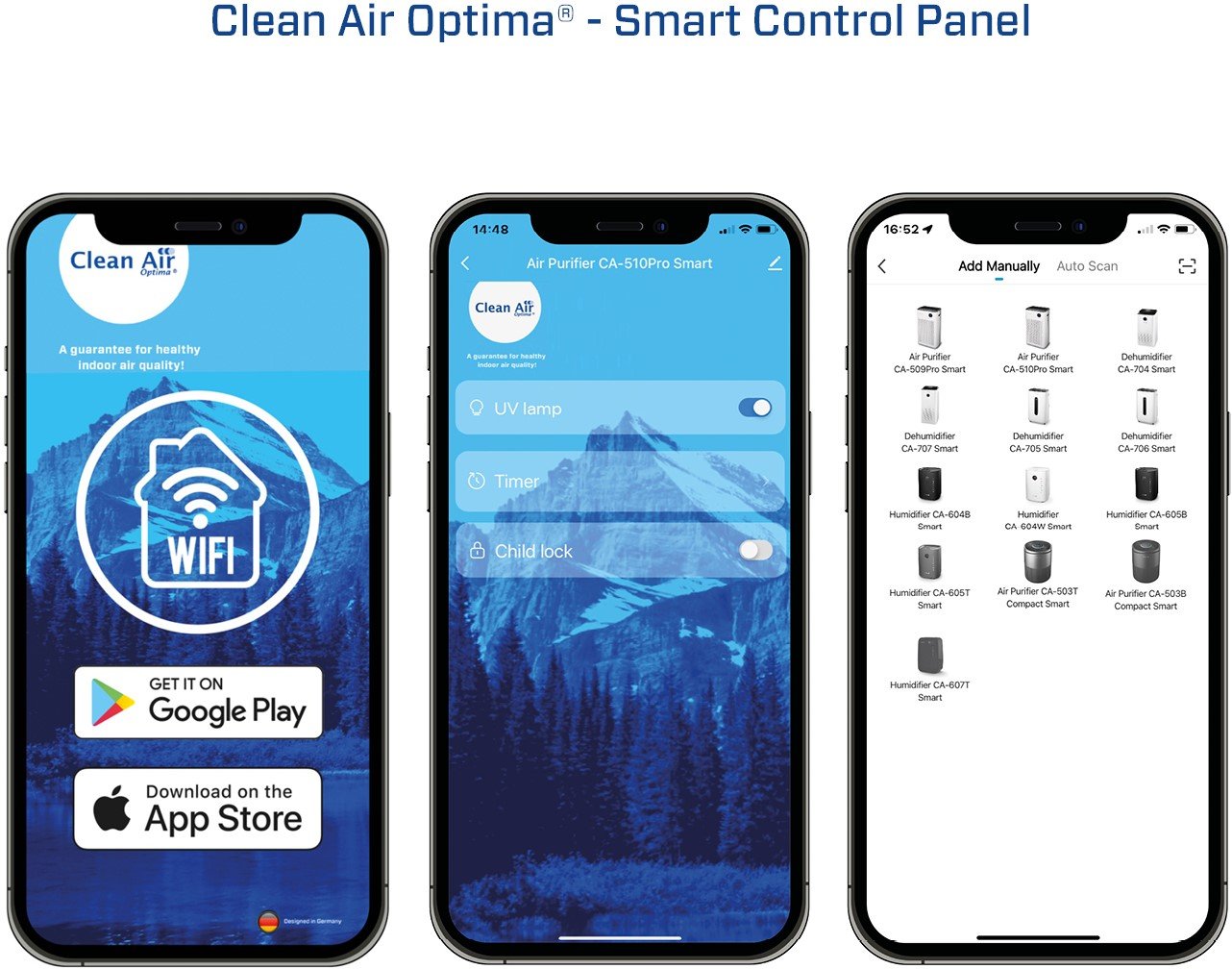

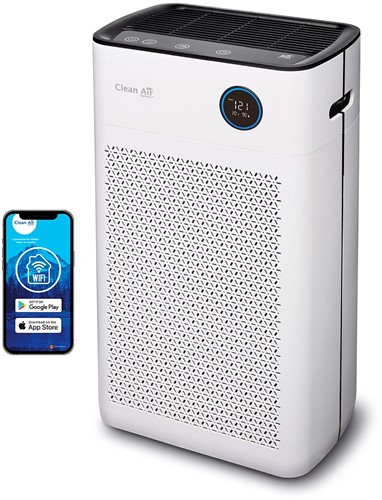

Compact design and easy operation
with the Clean Air Optima® App

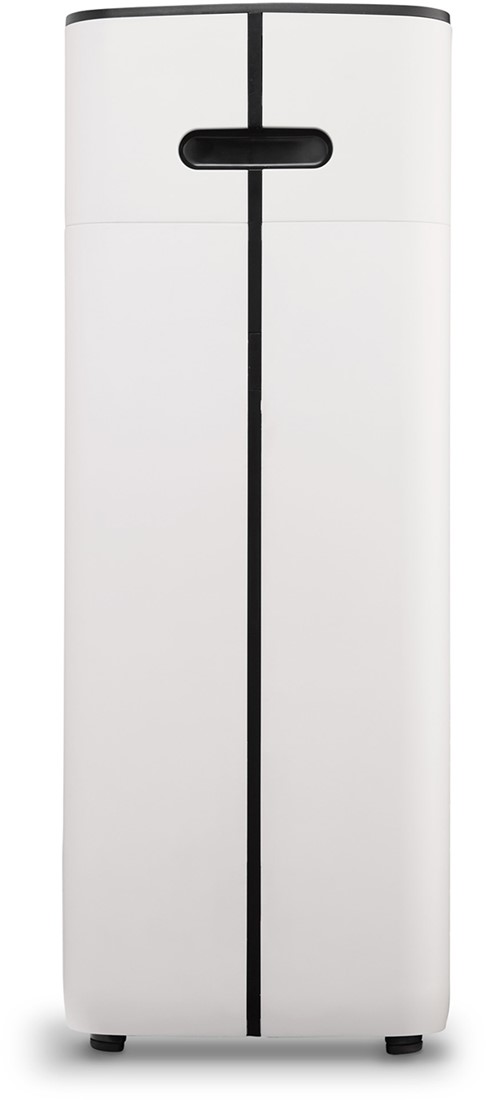

Convenient handle
The Clean Air Optima® CA-510Pro Smart intelligent HEPA UV ioniser air purifier has a convenient handle, making it easy to move from one room to another.

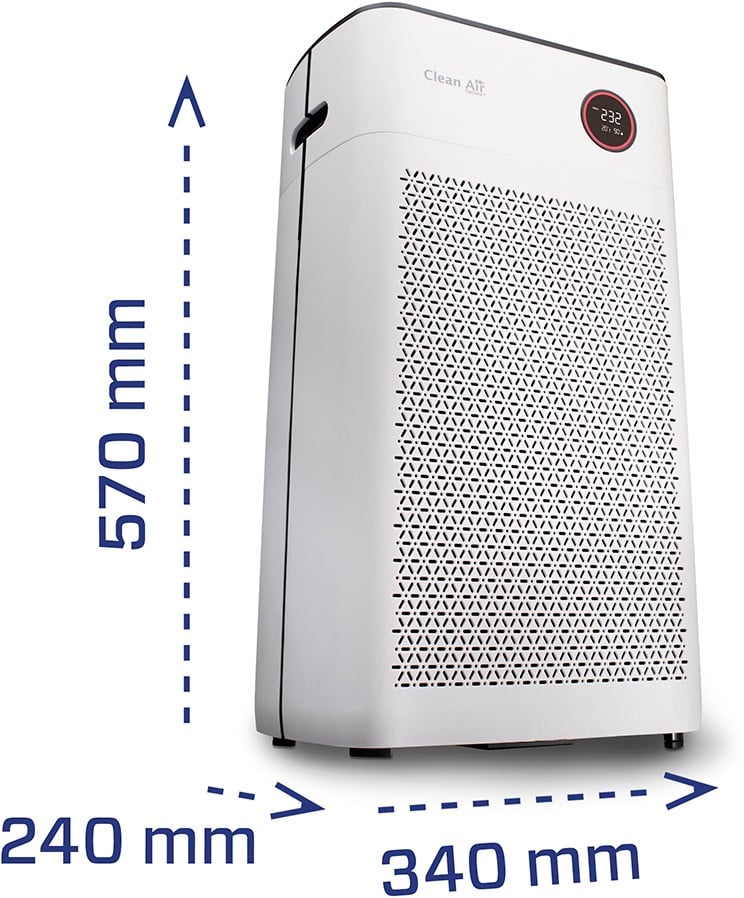

Compact design fits in with any interior
With its compact and attractively styled tablet design and neutral colour scheme, the unique Clean Air Optima® CA-510Pro Smart HEPA UV ioniser air purifier can fit in with any interior.
Simple operation

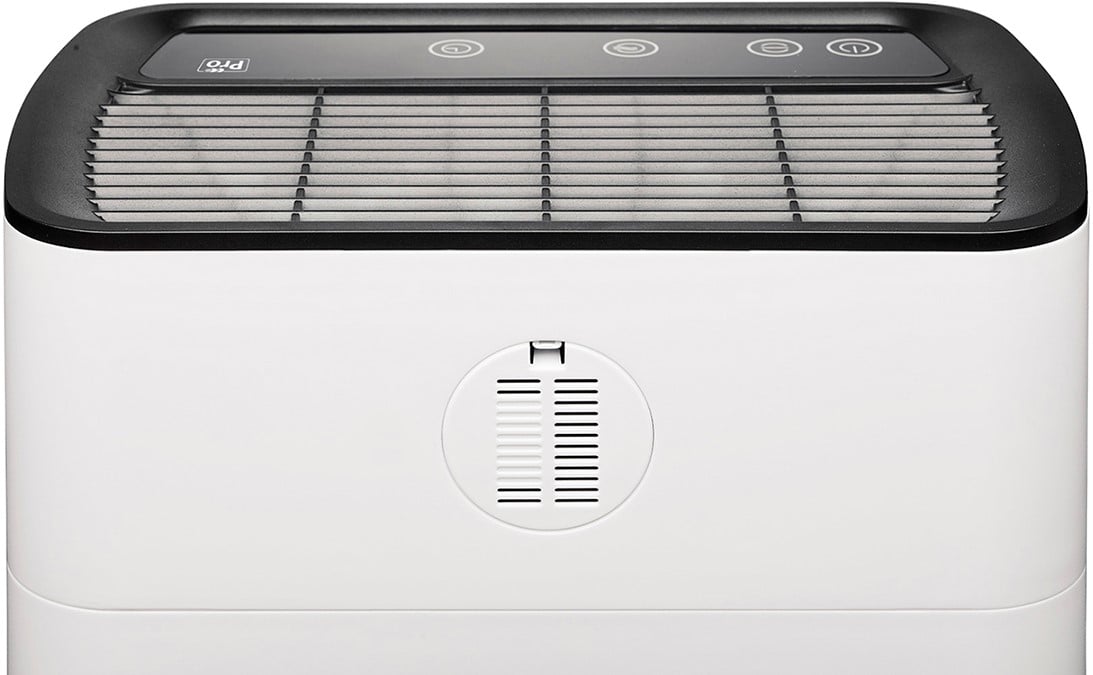

The clearly set out digital control panel on the top of the unit features four touch keys for easy selection of the desired settings.
CA-510Pro Smart air purifier setting options:
• Turn on and off
• Setting auto or sleep mode 10dB(A)
• Three fan speeds
• Timer for switch-off time (after 1,4 or 8 hours),
• Weekly programming and switch-on and switch-off time 0 - 24 hours (can be set via the App)

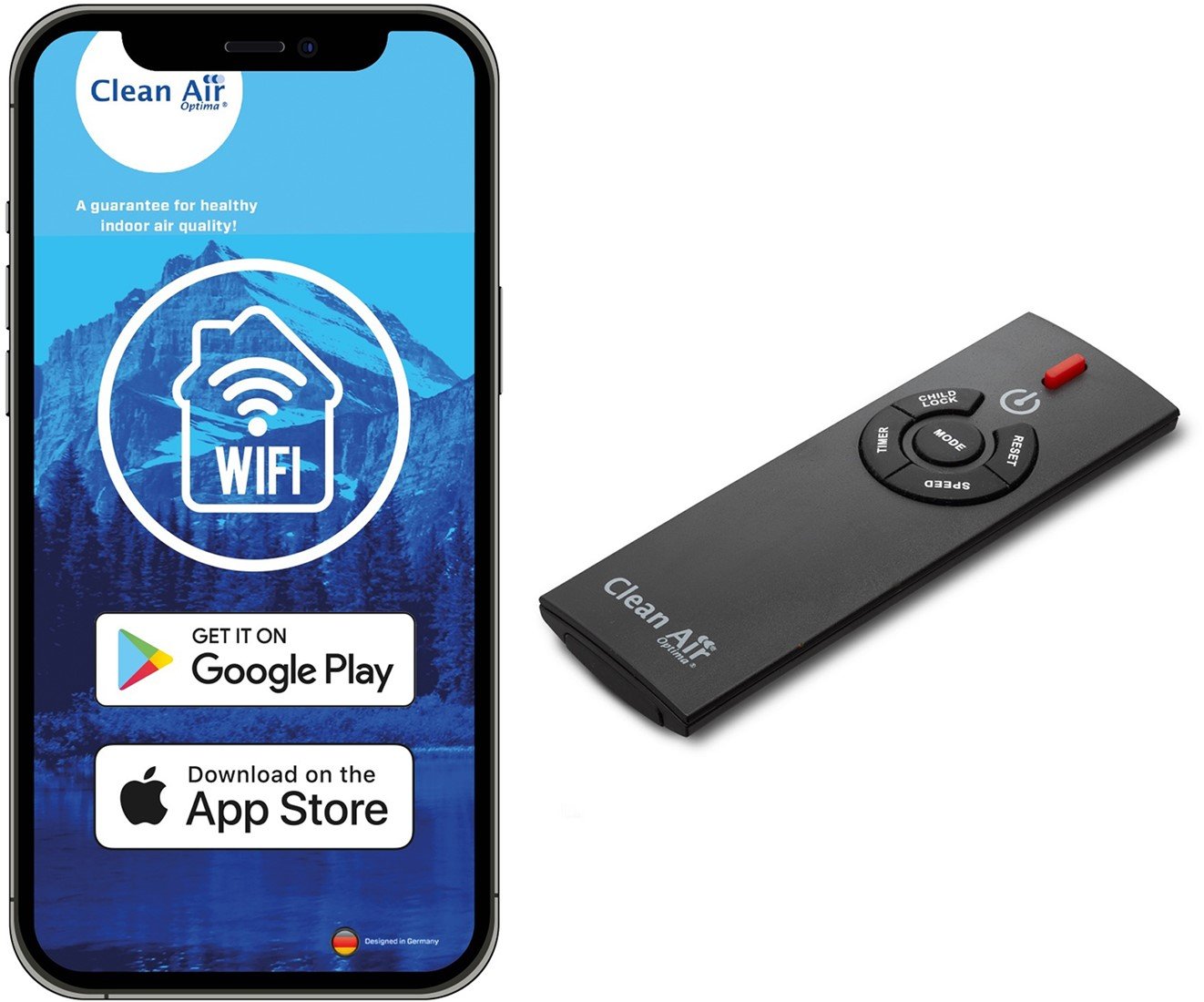

These functions can be set via the digital control panel and/or the Clean Air Optima® App.
Use and maintenance
Cleaning the outside of the air purifier:
Cleaning the outside of the air purifier:
1. Switch the unit off and pull the plug out of the socket.
2. Use a soft damp cloth to remove dust and dirt from the unit.
3. Make sure no water gets into the unit.
Cleaning Intelligent Particle Sensor™
Clean the air quality sensor every 6 to 8 weeks.
If the PM2.5 value shows a variation, dust on the sensor lens may be the cause.
Clean the sensor lens with a cotton bud:
1. Remove the cover from the sensor
2. Clean the sensor lens with a cotton bud and water as instructed in the manual. Then dry the lens with a clean cotton bud.
3. Replace the sensor cover.
4. Do not wipe the sensor lens with alcohol or any other organic solvent.
NB:
There is a risk of condensation on the air quality sensor if the humidity in the room is very high. This can cause the air quality indicator (Digital Display - Particle Measurement) to indicate incorrectly that the air quality is poor (which may not be the case). In this case, we recommend that you clean the air quality sensor or do not use the air purifier in automatic mode.
Cleaning and replacing filters
Replacing the composite TRUE HEPA and activated carbon filters:
The Clean Air Optima® CA-510Pro Intelligent Air Purifier is equipped with a filter service life monitoring mechanism that indicates that the filters must be replaced after 2,000 working hours. The indicator light on the air purifier will start flashing to show that the composite filters (HEPA + Activated Carbon Filter) must be replaced. Reset the timer for the composite filter by pressing and holding the Speed and Timer buttons (for around 3 seconds). The timer has been successfully reset once the indicator light goes out.
Depending on use, the filters must be replaced every 6/8 months.
Signs of expired filters: increased noise level, reduced airflow, clogged filter and increased presence of odours. The HEPA filter must be replaced with a new one if it changes colour from white to grey or black. The HEPA filter does NOT need to be replaced if it remains white.
For optimal effect, the permanent pre-filter in the Clean Air Optima® CA-510Pro Smart intelligent air purifier and the TRUE HEPA filters can be cleaned at monthly intervals with a soft brush or your vacuum cleaner (see CA-510Pro Smart air purifier manual).
Warning
Never wet or rinse the composite filters (HEPA + Activated Carbon Filter) with water.
